Ventilation Products

Ventilation

Rocvent ventilation tubing is manufactured in a number of styles:

layflat tubing

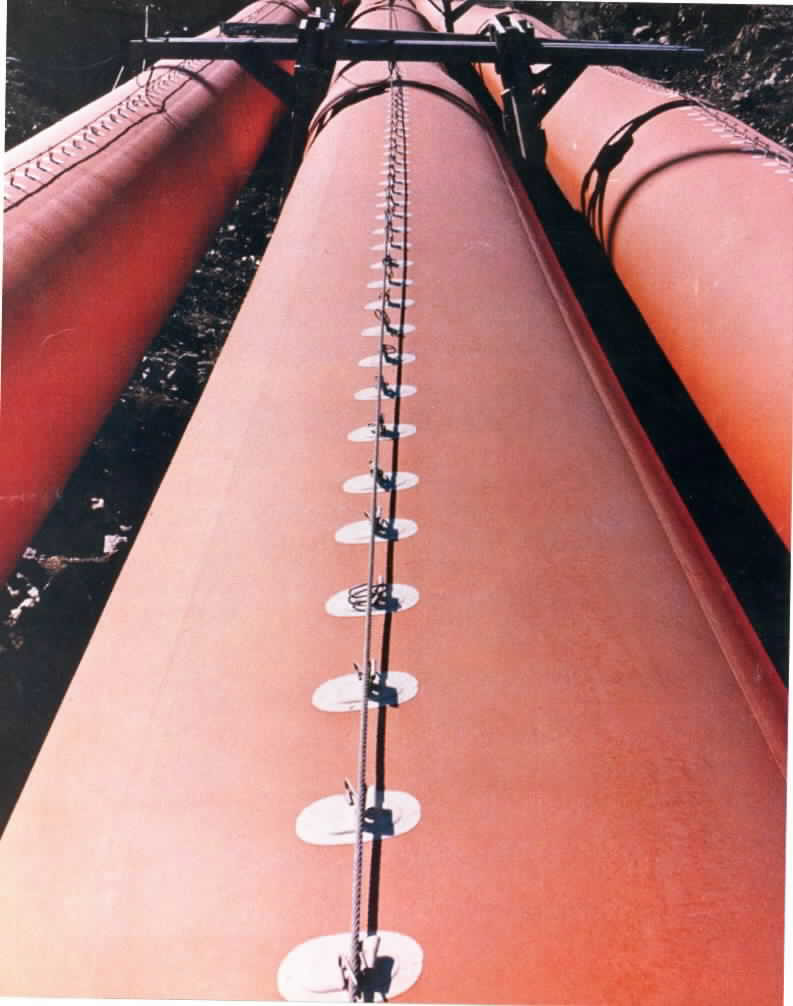

Layflat Tubing (with Snap Roc coupling system) - collapsible PVC tubing (positive pressure) manufactured in a selection of grades to match specific strength specifications. Six ply suspension, heavy duty suspension caribiners for a quick and secure installation.



spiral ducting

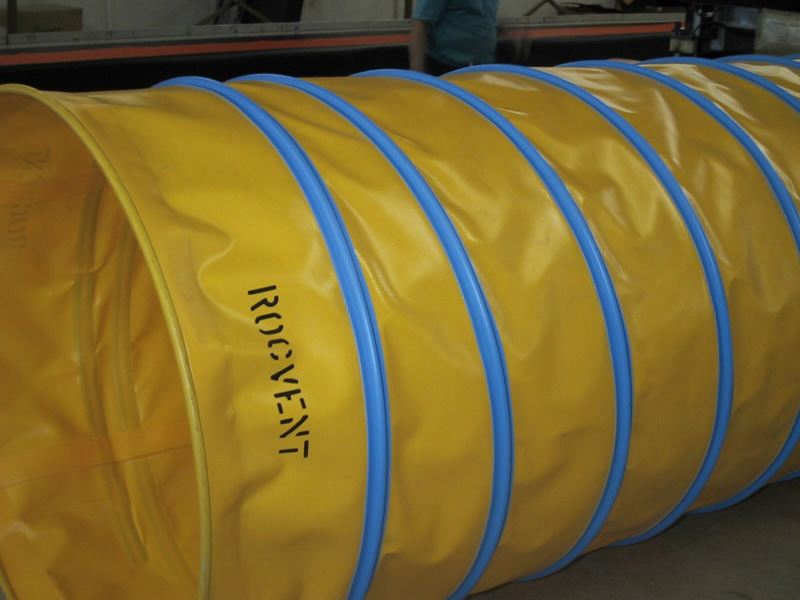

Spiral Ducting - spiral reinforced ducting (positive and negative pressure). This ducting is made from an RV1923 type material. Spring steel wire is welded on to the duct using a special extruded PVC profile with wear protection.

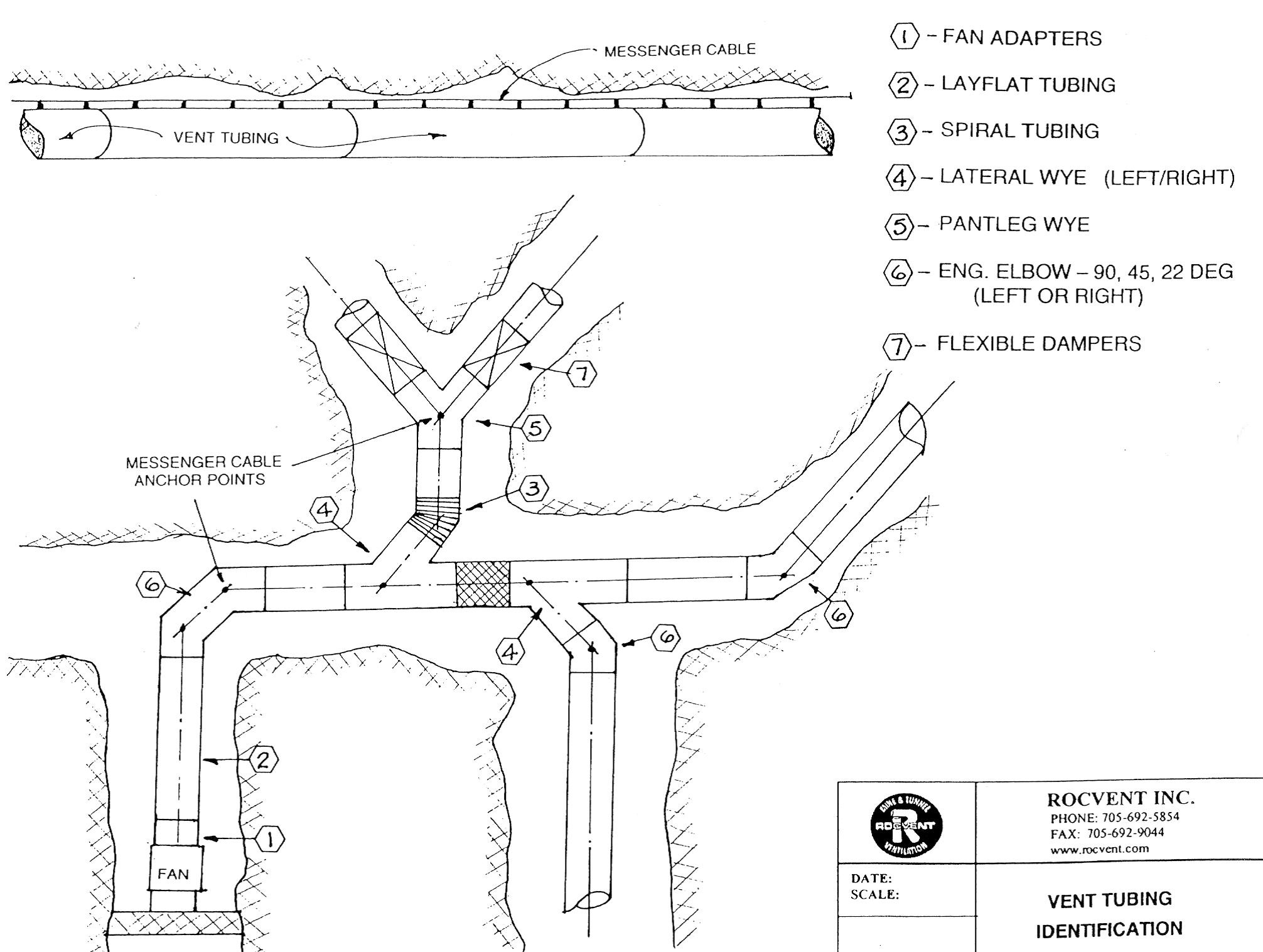

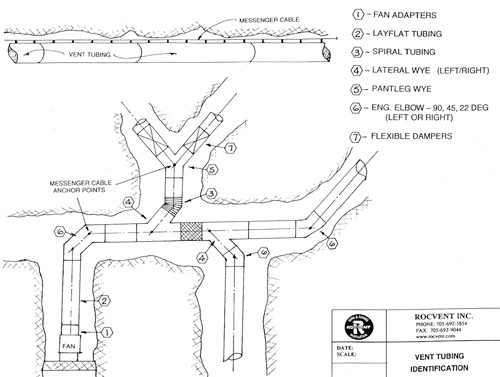

vent tubing

Standard sizes produced are (diameter/length):

  • 12" X 25'
  • 16" X 25'
  • 20" X 25'
  • 24" X 25'
  • 30" X 25'
  • 36" X 25'

Standard pitches are 4" and 6". Other combinations can be made to your specification.

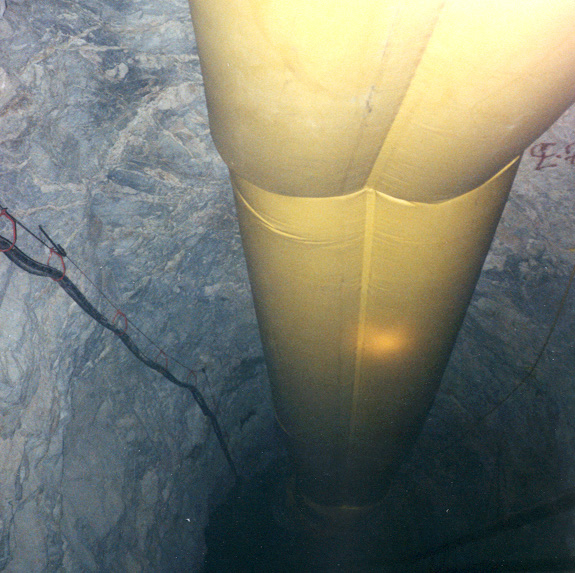

Duo-Duct (Oval) - collapsible dual oval chambers reducing required headroom by 25%. Allows for use of larger equipment.



Vent Tube Diameter (In)

Equivalent Duo-duct Size (H x W)

24

18 x 32

30

22 x 39

36

27 x 47

42

31 x 56

48

36 x 65

54

40 x 66

60

45 x 73


Spiral Reinforced Ducting - Duo Duct (Oval) - PVC Spiral Reinforced Duo Duct. Improves headroom.

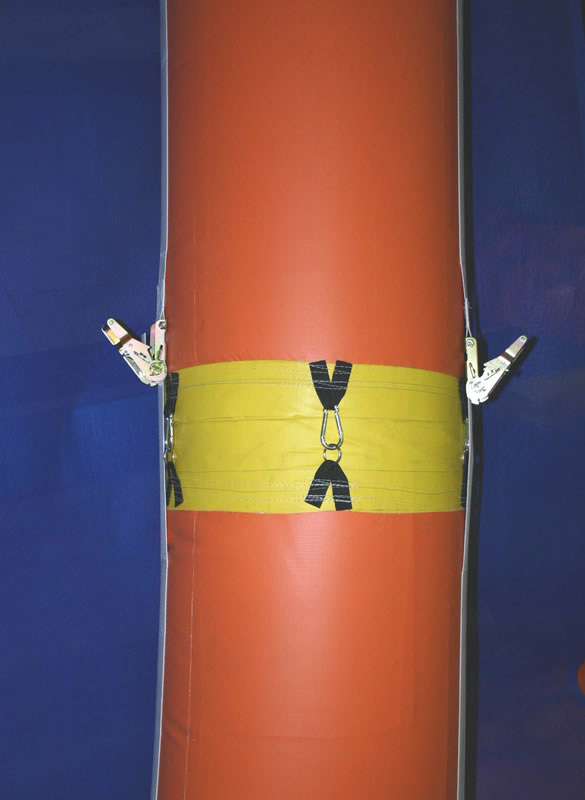

Vertical Shaft Tubing - is collapsible PVC tubing complete with 2" load rated webbing that is radio frequency welded to opposite sides of the tubing - (180°) with connection of each length with 2 - 2" ratchets connecting the webbing of each length of tubing.

Tube diameters vary from 300 mm to 2,400 mm (12" - 96"). The standard tube length is 7.62 & 15m (25' & 50'). Tube sections are available in other lengths on a custom order.

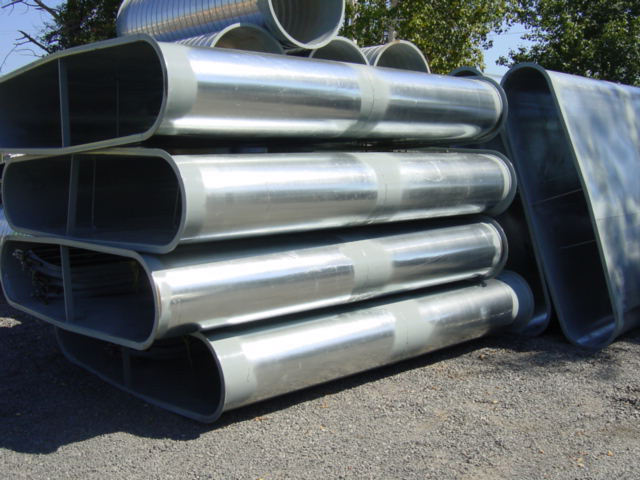

Round and Oval Steel Ducting - Standard steel 18 ga. galvanized ducting. Wyes, elbows, adapters and v-lock coupler fittings are available, as well as 16 ga with reinforced rings. 12 inch to 54 inch diameter.
