Other Shotcrete Vehicles
Thiessen Team offers other varieties of shotcrete carriers and applicators:
Underground Hybrid Shotcrete Carrier

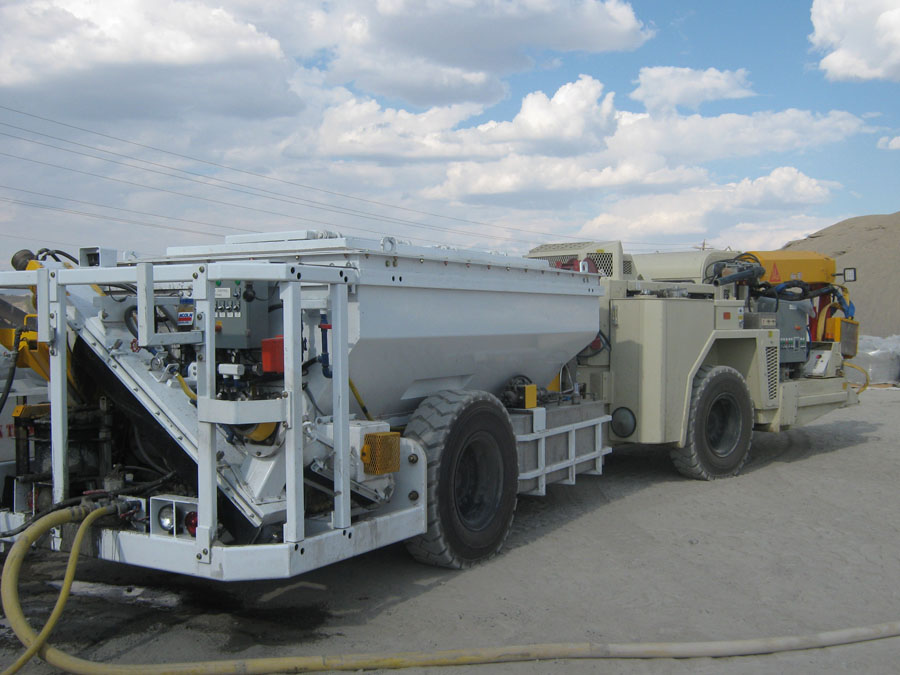

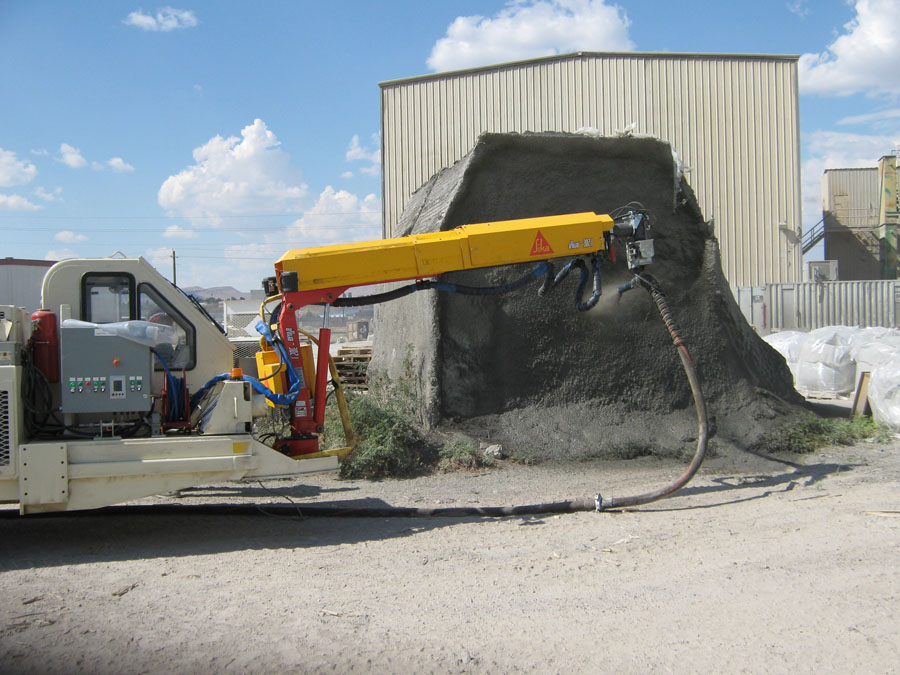

Bulk Shotcrete Carrier and Applicator
Features
- Aliva 263 wet / dry shotcrete machine (Electric)
- Aliva 302 shotcrete sprayboom (Hydraulic)
- 10 hp electric / hydraulic power pack
- 8.0 cubic yard shotcrete storage bin
- 3 main feed augers, 1 cross feed auger, 1 incline auger and 1 mix auger (Electric)
- Bin Vibrator (Electric)
- Air powered drum / accelerator pump
- Various carrier options
Options
- Whole unit can be custom made with your choice of carrier to meet customers specifications
- Power Options: Electric (575 or 460 volt), hydraulic, electric / hydraulic or air
- Shotcrete Machine & Sprayboom: Various Aliva models available

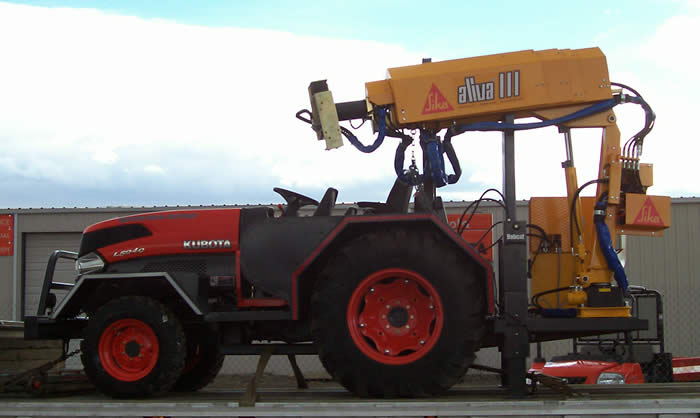

Kubota 520 Robotic Shotcrete Unit
Description
The Kubota 420 Robotic Shotcrete Unit is a complete mobile shotcrete unit complete with front forks and a shotcrete boom with a reach of over 18 feet.
Carrier
| Make & Model: | Kubota, R420 D1503-T-RP-1 |
| Type Liquid: | Cooled, 3 cylinder Turbo Diesel |
| Horse Power: | 43.0 @ 2,600 rpm |
| Operating Weight: | 7,275 lbs. (3,300 kg) |
| Displacement: | 1.4 cu. in. (1,497 cc) |
| Turbocharger: | Yes |
| E-TVCS: | Yes-Low Emissions |
| Overall: | 4' 11.8" |
| Wheelbase: | 5' 9.9" |
| Ground Clearance: | 11.3" |
| Tread: | 3' 10.5" |
| Angle Of Articulation: | 40 |
| Frame Oscillation: | 8 |
Forklift
| Maximum Lift: | 10' |
| Forks (Folding): | 2-2/2" X 5" X 40" |
| Capacity: | 5500 Lbs. |
Shotcrete Boom
| Maxiumum Height: | 21' |
| Maximum Length: | 19' |
| Minimum Length: | 8' |
| Angle Of Rotation: | 110 |
| Spraying Angle: | 240 |
| Remote Control: | Hydraulic |
| Hydraulic Aggregate: | 14 L/min with |
| Electric Drive: | 5.5 kW |
| Air Drive: | 7 kW |
| Diesel Engine: | Via Carrier |
